ELKOMIX 180

ELKOMIX-180
160 m³/h

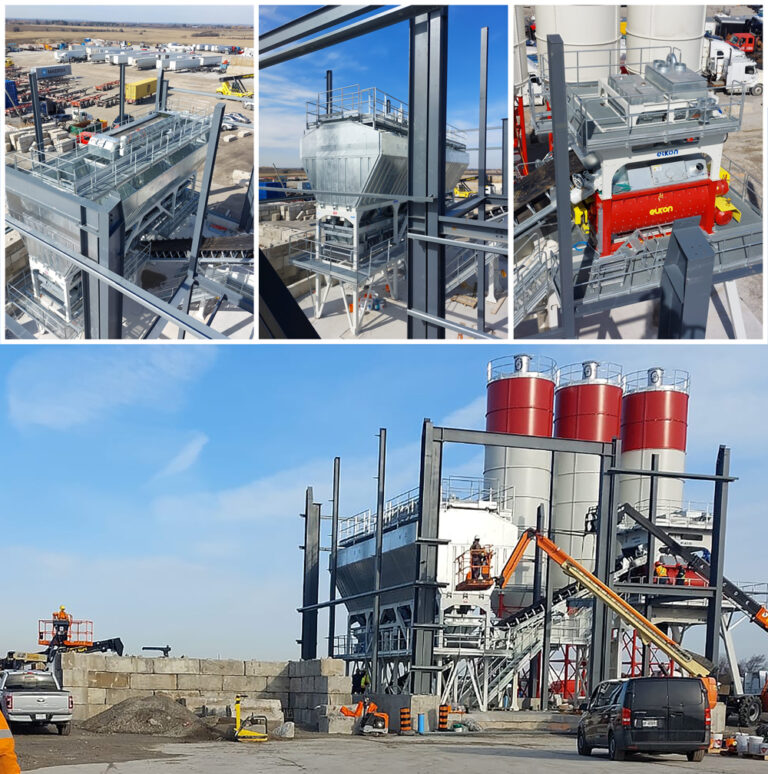

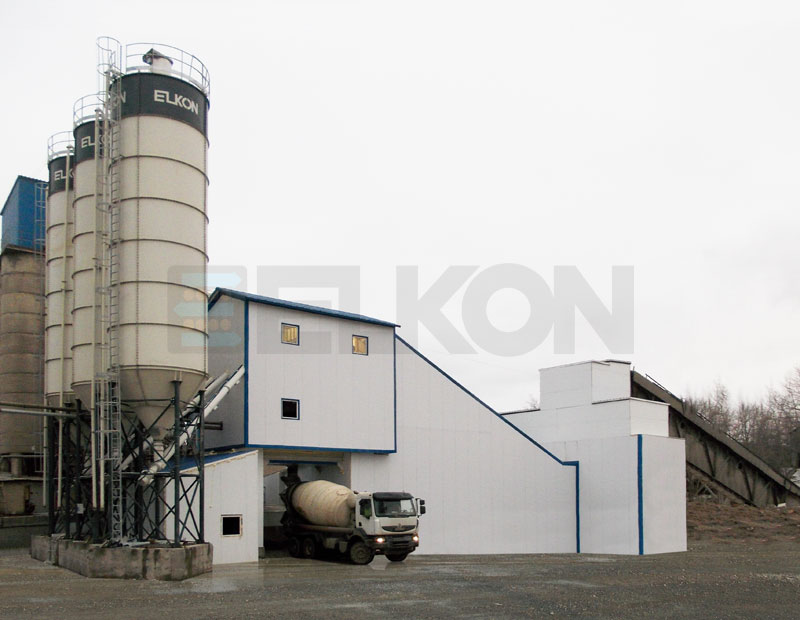

ELKOMIX-180 QUICK MASTER Compact Concrete Batching Plant has high production capacity, commissioned quickly and economically due to its folding and modular designed structure.

  • Up to 160m³/h concrete production.
  • 4.5m³ per batch.
  • 6750/4500 L ELKON TWIN SHAFT.
  • Transfer Conveyor.
  • 4 x 30m³ (120m³) Inline Agg Bins.
  • Silos available as required.
Elkon Benefits & Advantages
  • Quick and easy installation (only 2 days).
  • Cost effective sea and land transportation.
  • Possibility of installation on a confined space.
  • Quick and easy relocation.
  • Flexibility in the configuration.
  • Lowest foundation cost (8″ flat concrete surface is adequate for installation).
  • Easy maintenance and low operating costs.
  • High production performance with optimized automation system.

ELKON engineers aimed to combine the advantages of mobile concrete batching plants along with the easy transportation advantage to overseas by standard containers during designing phase of Quick Master Concrete Batching Plant series. As a consequence, shipping costs are reduced, depending on the destination.

Elkomix-180 Quick Master compact concrete batching plant, which is pre-installed and pre-wired in ELKON factories before shipment, can be installed & started up very quickly in the job sites and be ready for concrete production within only 2 days.

Capacity 160 m3/h
The Capacity of Aggregate Bins 4×30 m3
The Capacity of Aggregate Weigh Hopper 9900 kg
Loading Type of Aggregate to the Mixer Transfer Conveyor
Mixer Capacity 6750 / 4500 l
Mixer Type Twin Shaft
Cement Weighing Capacity 2500 kg
Water Weighing Capacity 1100 kg
Additive Weighing Capacity 2×50 l
Control System SIEMENS or ABB
Cement Screw Diameter (Ø) 323 mm
