ELKOMIX 135

ELKOMIX-135
120 m³/h

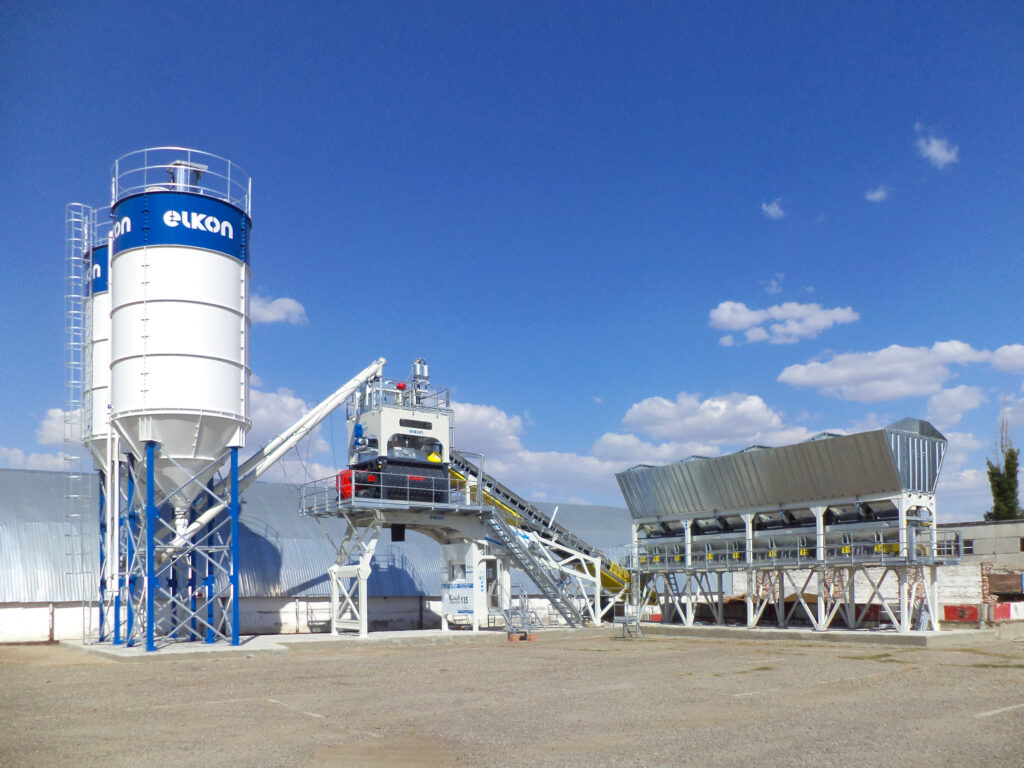

ELKOMIX-135 QUICK MASTER  Compact Concrete Batching Plant
has high production capacity, commissioned quickly and economically due to its folding and modular designed structure.

  • up to 120m³/h concrete production
  • 4500/3000 L ELKON TWIN SHAFT
  • Skip Hoist - OR - Transfer Conveyor
  • 4 x 20m³ (80m³) Inline Agg Bins
  • Silos available as required
Elkon Benefits & Advantages
  • Cost effective sea and land transportation.
  • Possibility of installation on a confined space.
  • Quick and easy relocation.
  • Flexibility in the configuration.
  • Minimum foundation cost (only flat concrete surface is adequate for installation).
  • Easy maintenance and low operating costs.
  • High production performance with optimized automation system.

ELKON engineers aimed to combine the advantages of mobile concrete batching plants along with the easy transportation advantage to overseas by standard containers during designing phase of Quick Master Concrete Batching Plant series. As a consequence, shipping costs are reduced, depending on the destination.

Elkomix-135 Quick Master compact concrete batching plant, which is pre-installed and pre-wired in ELKON factories before shipment, can be installed & started up very quickly in the job sites and be ready for concrete production within only 2 days.

Both skip bucket and transfer conveyor option is available for transferring aggregate in Elkomix-135 Quick Master compact concrete batching plant and the plant can be installed on a flat surface without concrete footings for both option.

Capacity 120 m3/h
The Capacity of Aggregate Bins 4×20 m3
The Capacity of Aggregate Weigh Hopper 6600 kg
Loading Type of Aggregate to the Mixer Skip Hoist/Transfer Conveyor
Mixer Capacity 4500 / 3000 l
Mixer Type Twin Shaft
Cement Weighing Capacity 1600 kg
Water Weighing Capacity 900 kg
Additive Weighing Capacity 2×25 l
Control System SIEMENS or ABB (PLC – PC)
Operator Cabinet Included (Built-in)
Cement Screw Diameter (Ø) Ø 273 mm
Compressor Included
Capacity 157 yd3/h
The Capacity of Aggregate Bins 4×26 yd3
The Capacity of Aggregate Weigh Hopper 14550 lbs
Loading Type of Aggregate to the Mixer Skip Hoist/Transfer Conveyor
Mixer Capacity 6 / 4 yd3
Mixer Type Twin Shaft
Cement Weighing Capacity 3527 lbs
Water Weighing Capacity 1984 lbs
Additive Weighing Capacity 2×6.6 gal
Control System SIEMENS or ABB (PLC – PC)
Operator Cabinet Included (Built-in)
Cement Screw Diameter (Ø) 10 in
Compressor Included
