ELKOMIX 160

ELKOMIX-160
140 m³/h

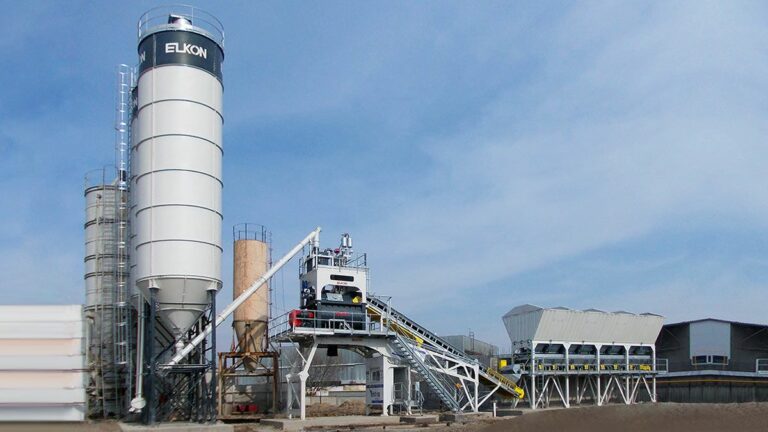

ELKOMIX-160 QUICK MASTER  Compact Concrete Batching Plant
has high production capacity, commissioned quickly and economically due to its folding and modular designed structure.

  • up to 140m³/h concrete production
  • 4m³ per batch
  • 6000/4000 L ELKON TWIN SHAFT
  • Transfer Conveyor
  • 4 x 30m³ (120m³) Inline Agg Bins
  • Silos available as required
Elkon Benefits & Advantages
  • Quick and easy installation (only 2 days)
  • Cost effective sea and land transportation
  • Possibility of installation on a confined space
  • Quick and easy relocation.
  • Flexibility in the configuration.
  • Minimum foundation cost (only flat concrete surface is adequate for installation).
  • Easy maintenance and low operating costs.
  • High production performance with optimized automation system.

ELKON engineers aimed to combine the advantages of mobile concrete batching plants along with the easy transportation advantage to overseas by standard containers during designing phase of Quick Master Concrete Batching Plant series. As a consequence, shipping costs are reduced, depending on the destination.

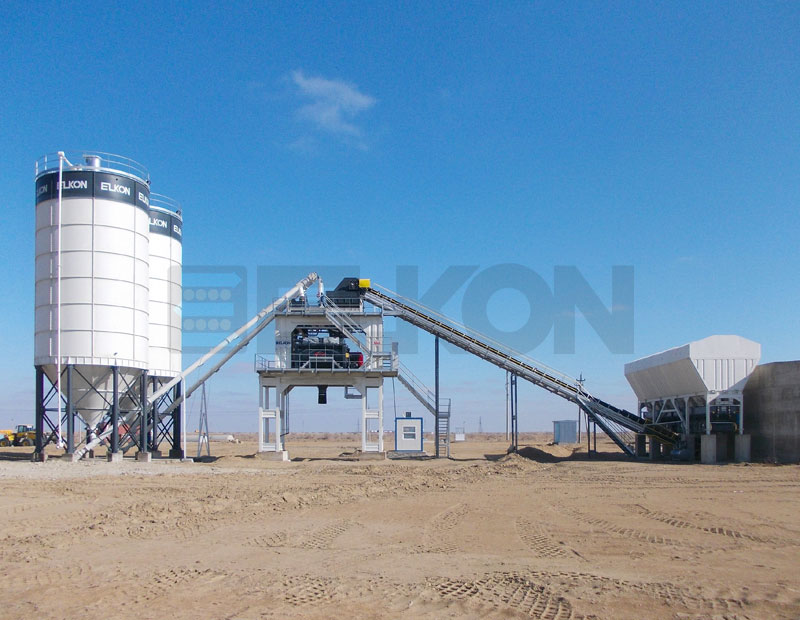

Elkomix-160 Quick Master compact concrete batching plant, which is pre-installed and pre-wired in ELKON factories before shipment, can be installed & started up very quickly in the job sites and be ready for concrete production within only 2 days.

Capacity 140 m3/h
The Capacity of Aggregate Bins 4×30 m3
The Capacity of Aggregate Weigh Hopper 8800 kg
Loading Type of Aggregate to the Mixer Transfer Conveyor
Mixer Capacity 6000 / 4000 l
Mixer Type Twin Shaft
Cement Weighing Capacity 2200 kg
Water Weighing Capacity 1000 kg
Additive Weighing Capacity 2×50 l
Control System SIEMENS or ABB
Cement Screw Diameter (Ø) 323 mm
We're here to help!
We can provide optional configurations to meet your specific concrete needs!
