ELKOMIX 180

ELKOMIX-180
175 m³/h

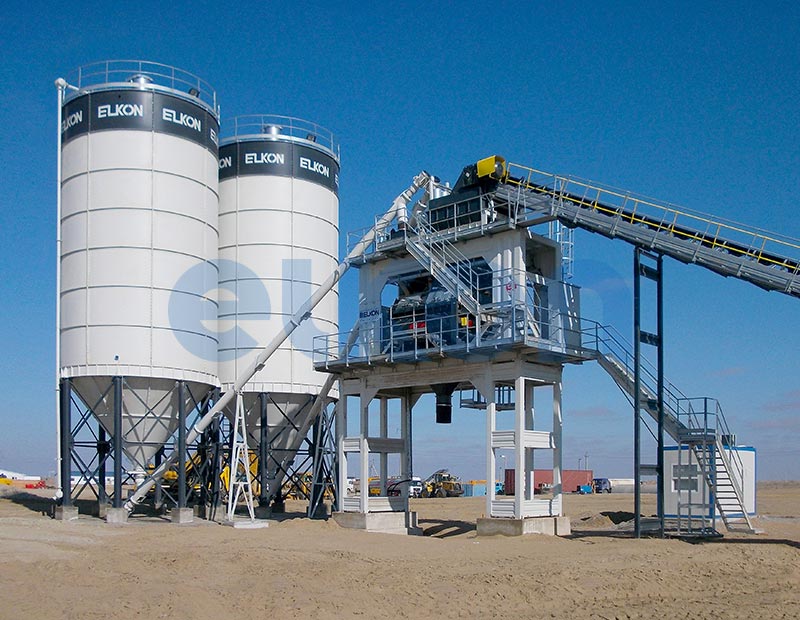

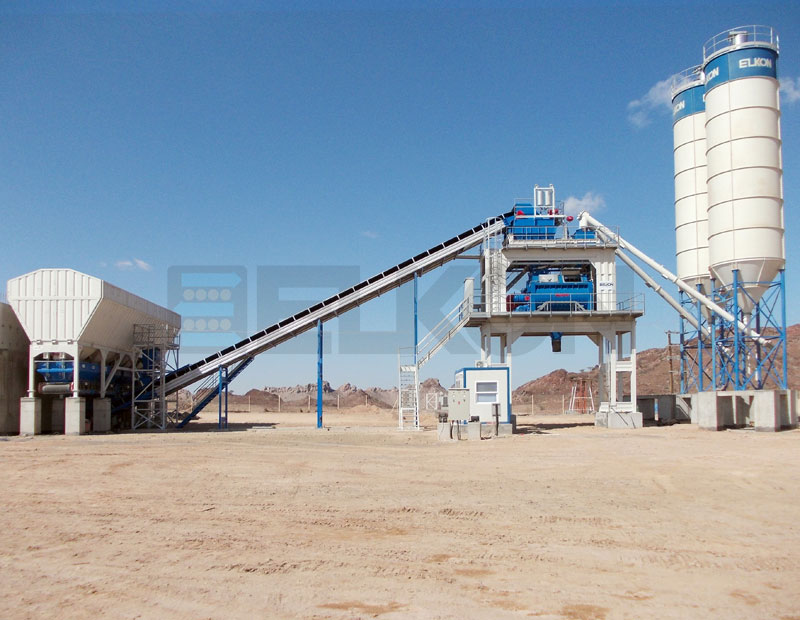

ELKON stationary concrete batching plants are being manufactured since 1980’s. ELKOMIX-180 stationary concrete batching plant from the series is equipped with 6750/4500 l. twin shaft mixer. ELKOMIX-180 Stationary Concrete Batching Plant which has 175 m³/h concrete production capacity is the product of ELKON’s high quality and advanced technology

Elkon Benefits & Advantages
  • Flexibility in the configuration.
  • High production performance and high productivity.
  • Easy installation due to its modular structure
  • Variable layout options.
  • Wide operating and maintenance areas.
  • Easy maintenance and low operating costs.

ELKON stationary concrete batching plants are mostly preferred by companies which need slightly higher concrete production capacities and want to use the concrete batching plant for a long period of time in the same area to produce concrete in a comfortable way in wide areas thanks to the advantage of flexibility in the configuration and layouts.

ELKON, with more than 40 years of experience in the field, has designed and manufactured stationary concrete batching plants, which are also known as conventional type concrete batching plants, in an innovative and technological approach. In this respect, ELKON designed and manufactured the stationary concrete batching plant as modular as possible, therefore they can be transported easier and installed in a shorter period of time comparing to similar concrete batching plants.

ELKOMIX-180 stationary concrete batching plant is equipped with aggregate holding hopper to hold the required materials at top of mixer after weighing for the next batch while the mixer is batching (available only in the transfer conveyor option). ELKOMIX-180 stationary concrete batching plant guarantees to its users the maximum production efficiency by providing optimum cycle time.

Depending on the requirement, aggregate storage bins can be produced with 3, 4, 5, 6 or even more compartments and thus different materials can be used as much as required.

Wet and dry concrete production in one concrete plant is also possible with additional dry concrete discharge line to the Elkomix-180 stationary concrete batching plant (central mix concrete plant). In this sense, ELKON provides flexibility and comfort to its users to meet various requirements of job site layouts & conditions and special projects, etc.

Whenever it is required, ELKON stationary concrete batching plants can be equipped with two mixers on the same structure thus the production capacity is doubled as well as 2 different concrete types can be produced at the same time.

ELKON fits the stationary concrete batching plants in the installation sites to provide maximum saving and productivity on the available space and if required specially designs stationary concrete batching plants depending on the jobsite layout.

Please contact us for the most appropriate concrete batching plant solution for your requirement.

Capacity 175 m3/h
The Capacity of Aggregate Silo 4×30 m3
The Capacity of Aggregate Weigh Hopper 2×4950 kg / 9900 kg
Loading Type of Aggregate to the Mixer Transfer Conveyor
Mixer Capacity 6750 / 4500 l
Mixer Type  Twin Shaft
Cement Weighing Capacity 2500 kg
Water Weighing Capacity 1100 kg
Additive Weighing Capacity 2×50 l
Control System SIEMENS or ABB (PLC – PC)
Operator Cabinet Included
Cement Screw Diameter (Ø) 323 mm
Compressor Included
Capacity 229 yd3/h
The Capacity of Aggregate Silo 4×39 yd3
The Capacity of Aggregate Weigh Hopper 2×10913 lbs / 21826 lbs
Loading Type of Aggregate to the Mixer Transfer Conveyor
Mixer Capacity 9 / 6 yd3
Mixer Type  Twin Shaft
Cement Weighing Capacity 5511 lbs
Water Weighing Capacity 2425 lbs
Additive Weighing Capacity 2×13.2 gal
Control System SIEMENS or ABB (PLC – PC)
Operator Cabinet Included
Cement Screw Diameter (Ø) 12 in
Compressor Included
