After realizing the growing need for mobility and flexibility day by day in the concrete and construction sector, ELKON has designed and produced the first mobile concrete batching plant in Turkey 20 years ago.Until now, from Canada to Germany, from England to South Africa, more than 700 units of ELKON mobile concrete batching plants were installed in more than 100 countries and carry on concrete production in the important projects.

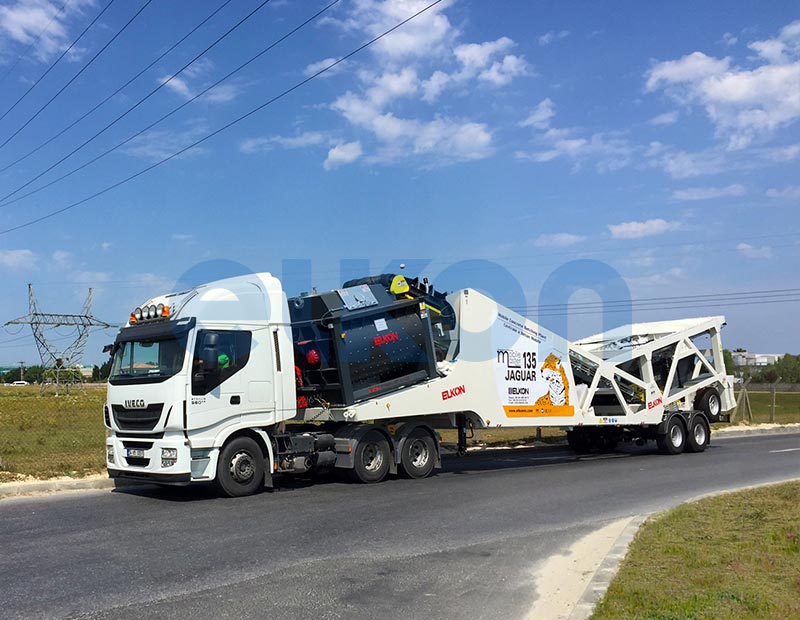

The main unit of ELKON Mobile Concrete Batching Plants is designed on a mono-block chassis which is equipped with axle and tires and therefore the main unit can be transported by one truck trailer.

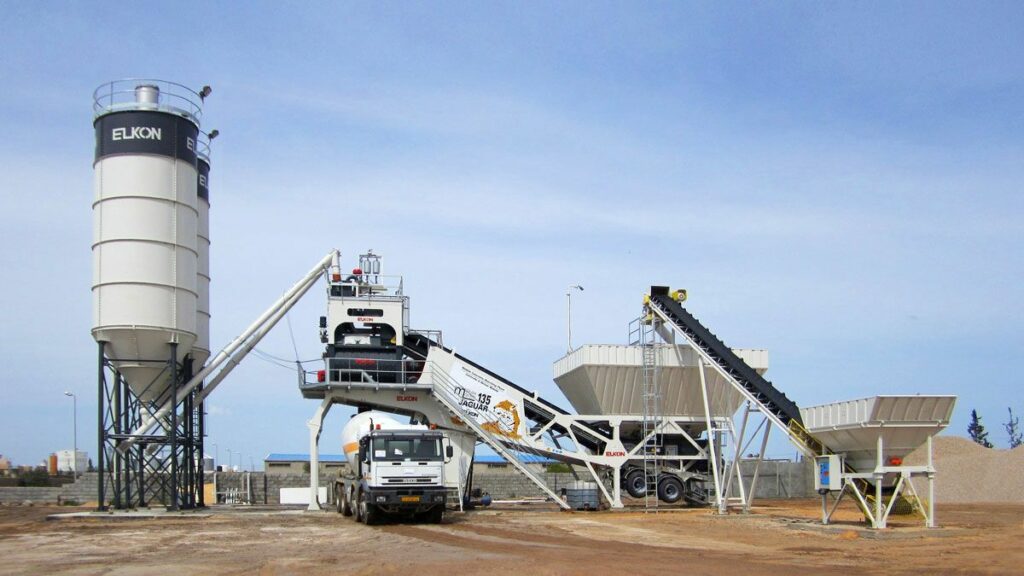

ELKON Mobile Master-135 JAGUAR Mobile Concrete Batching Plant can be equipped with 4×22,5 m3 capacity square type aggregate bin or 4×20 m3 capacity inline type aggregate bin .

Like the all other models of ELKON Mobile Master Series, when the square type aggregate bin is used, the main unit can be transported by only one truck trailer. In this option, 4 different types of aggregates can be stored in the aggregate bin and the aggregate feeding system can be done either by concrete ramp or optional automated aggregate feeding system (eliminates concrete ramp requirement).

Linear type aggregate bin is equipped with its own axle and tires separately from the main unit. When linear type aggregate bin is chosen, main unit and the linear type aggregates bin can be separately towed and transported by 1 truck trailer each.
